Harris Welco

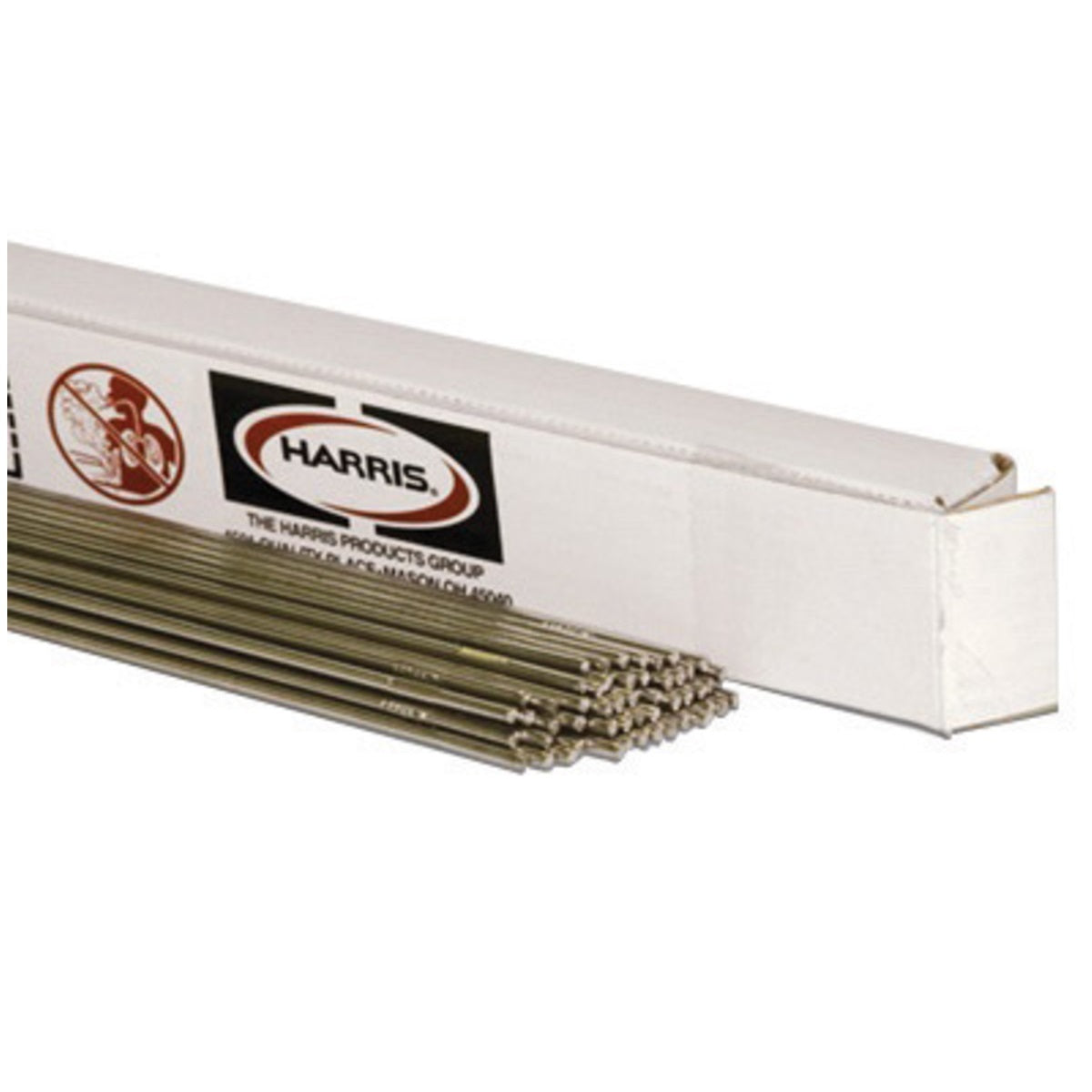

1/8" X 36" RBCuZn-C Harris® Flux Coated Low Fuming Bronze White 1 lb Tube

1/8" X 36" RBCuZn-C Harris® Flux Coated Low Fuming Bronze White 1 lb Tube

$32.93 USD
$32.93 USD
Sale Sold out
Shipping calculated at checkout.

Item Details

  • Harris® White Low Fuming Bronze Flux-Coated Welding Alloy Rod measures 1/8" Dia x 36" and has a flux coating that provides superior wetting action with no objectionable fuming. Designed for braze welding applications of steel, cast iron and copper, and can also be used with standard oxy-fuel torches. It features a brazing temperature range of 1670 - 1750 degrees Fahrenheit with a maximum tensile strength up to 65 ksi. Its porosity-free deposits yield an excellent color match to the yellow brasses. It comes in a 1 lb box. Minimum order of 4 lbs / box (4 ea - 1 lb. tubes)

Features

  • Tensile strength - Up to 65,000 psi
  • Brazing temperature range - 1670° F to 1750° F
  • Flux coating provides excellent wetting action with no objectable fuming
  • Porosity - free deposits
  • Good machinability
  • Color matches yellow brass

Specifications

  • AWS A5.8 RBCuZn-C
  • ASME SFA 5.8 RBCuZn-C
  • ISO 17672 Cu681

Applications

  • Braze welding of steel, cast iron and copper
  • May be used with standard oxy-fuel torch

Caution

  • Keep your head out of fumes
  • Use enough ventilation, exhaust at the arc, or both, to keep fumes and gases from your breathing zone and the general area
  • Wear correct eye, ear, and body protection
  • Do not touch live electrical parts

Product Attributes

Trade Name

» Harris®

Diameter

» 1/8"

Length

» 36"

Coating

» Flux

AWS Classification

» RBCuZn-C

Weight

» 1 lb

Package

» Tube

» Show more details and specs

View full details
