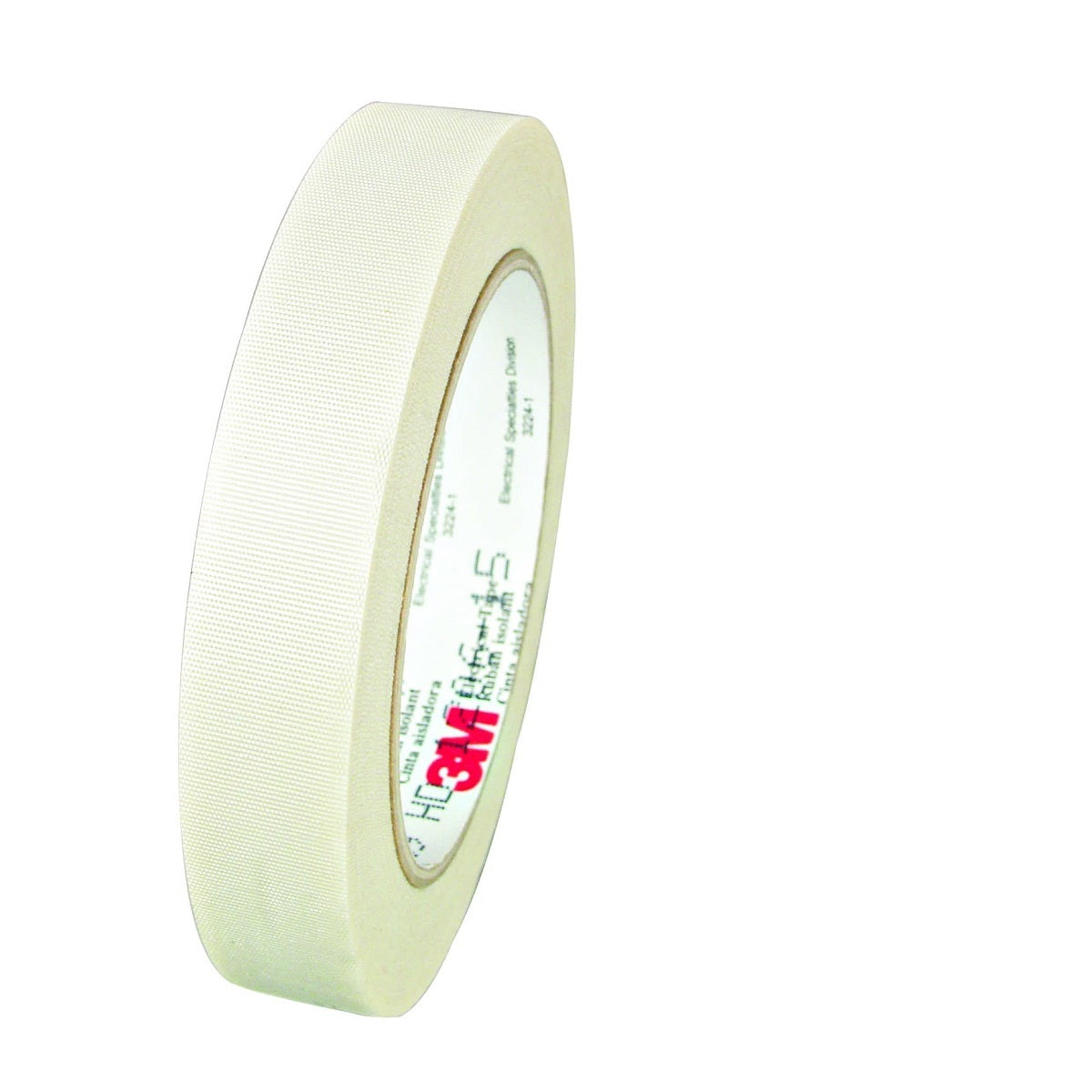

3M™ 0.75" X 66' White Scotch® 69 7 mil Glass Cloth Electrical Tape

3M™ 0.75" X 66' White Scotch® 69 7 mil Glass Cloth Electrical Tape

$43.07 USD
$43.07 USD
Sale Sold out
Shipping calculated at checkout.

Item Details

  • Scotch® Tape 69 is a premium grade, edge tear resistant, electrical tape. This printable tape has a non corrosive adhesive and offers solvent resistant protection. It is used as a coil cover, an anchor, a banding, a core, a layer and a crossover insulator. The flame retardant tape is suitable for 600V rated, dry location application motors and transformers.

Features

  • It meets all ROHS standards

Specifications

  • Tested in conformance with UL 180 Listed

Applications

  • Insulating electric and induction-type furnace power supply leads
  • Securing high-temperature, non-PSA insulation (such as asbestos and glass)
  • Securing Scotch® fire retardant electric arc proofing tape 77
  • Splicing wire SF and SFF rated 302° F (150° C), 356° F (180° C)
  • Reinsulating and repairing coils on mining machines
  • Splicing silicone-covered glass wire where splices require more abrasion resistance and mechanical strength than can be provided by silicone tapes Insulating Class dry-type transformer leads
  • Insulating splices made on SA type wire in heat treat areas
  • Especially suited to high-temperature applications
  • Used in a variety of coil/transformer and motor applications, including an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold down, end turn and lead anchor and connection

Product Attributes

Product Type

» Electrical Tape

Width

» 0.75"

Length

» 66'

Trade Name

» Scotch® 69

Material

» Glass Cloth

Color

» White

Thickness

» 7 mil

Adhesive

» Pressure Sensitive Silicone
