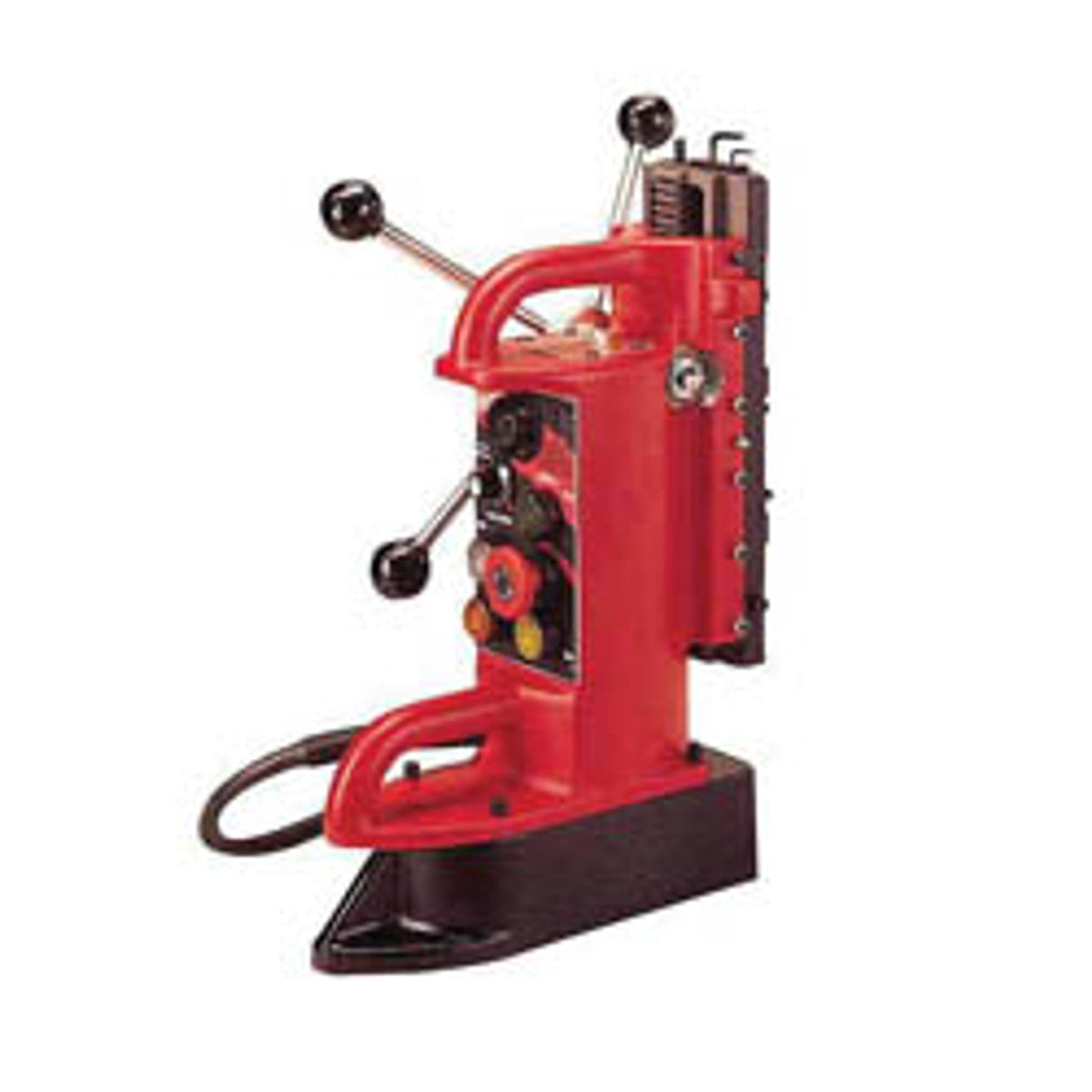

Milwaukee 4202 Electro-Magnetic Fixed Position Drill Press Base with 9" Drilling Depth

Product Description

Milwaukee Electromagnetic Drill Press Base, Fixed Position Portable, For Use With: 1/2 in and Thicker Flat Ferrous Material, 15 in Height, 4-1/4 in Width, 9 in D, 3/4 in Chuck, 9 in Drilling Depth, Steel, Red/Gray/Black

The 4202 electromagnetic variable speed base features solid state electronic switching and a 9 in drill travel. Feedback speed control maintains speed and a motor/magnet lockout prevents de-mag during operation. For use on any flat ferrous material, 1/2 in and thicker.



PACKAGE DESCRIPTION

Package Quantity: 1/PK



FEATURES

• Feedback speed control maintains speed and a motor/magnet lockout prevents demagnetization during operation
• 9 ft fixed cord
• Full wave holding power
• Computer controlled reverse
• 120V AC, 12.5 A max rating
• 1/2 in chuck capacity
• Grounded construction



SPECIFICATIONS

Type:	Fixed Position Portable
Suitable For Use With:	1/2 in and Thicker Flat Ferrous Material
Height:	15 in
Width:	4-1/4 in
Depth:	9 in
Chuck Size:	3/4 in
Drilling Depth:	9 in
Material:	Steel
Finish:	Red/Gray/Black



STANDARD APPROVALS

1-UL Listed, CSA Listed, ETL Listed
