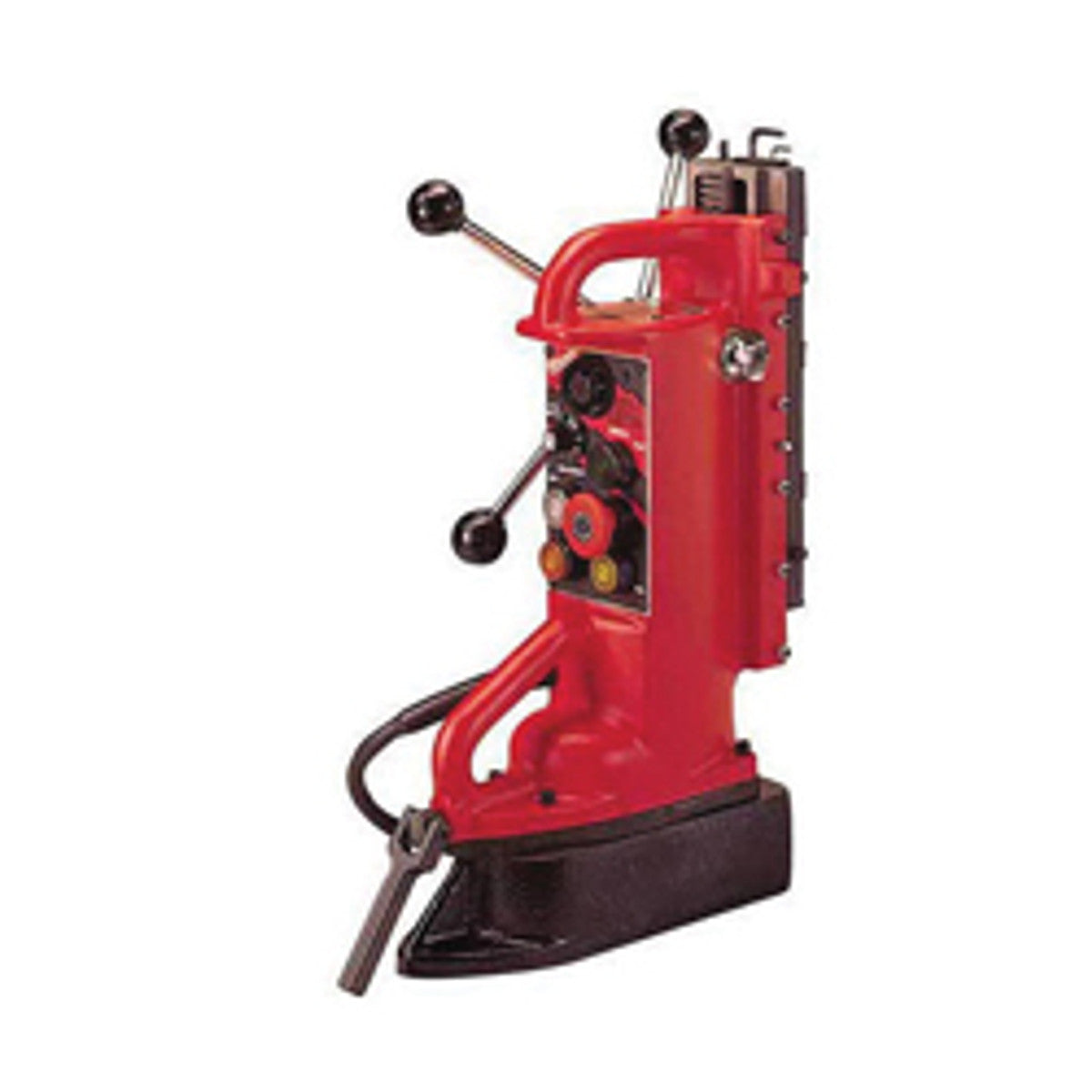

Milwaukee 4203 Electro-Magnetic Adjustable Position Drill Press Base with 11" Drilling Depth

Product Description

Milwaukee Electromagnetic Drill Press Base, Adjustable Position Portable, For Use With: 1/2 in and Thicker Flat Ferrous Material, 17-1/4 in Height, 4-1/4 in Width, 11 in D, 1 in Chuck, 11 in Drilling Depth, Steel, Red/Gray/Black

The 4203 electromagnetic variable speed adjustable base features solid state electronic switching and an 11 in drill travel. Adjustable position on this base makes lining up the bit easier and faster. The 4203 offers adjustability of 3/4 in direction of base length [front -to-back] and 20 deg right or left of center. Line Feedback speed control maintains speed and a motor/magnet lockout prevents de-mag during operation.



PACKAGE DESCRIPTION

Package Quantity: 1/PK



FEATURES

• Electromagnetic variable speed adjustable base features solid state electronic switching
• Adjustable position on this base makes lining up the bit easier and faster
• Line feedback speed control maintains speed and a motor/magnet lockout prevents demagnetization during operation
• 9 ft fixed cord
• Full wave holding power
• Computer controlled reverse
• 120V AC, 12.5 A max rating
• 1/4 in chuck capacity
• 4203 offers adjustability of 3/4 in in direction of base length front to back and 20 deg right or left of center
• 360 deg swivel
• Grounded construction



SPECIFICATIONS

Type:	Adjustable Position Portable
Suitable For Use With:	1/2 in and Thicker Flat Ferrous Material
Height:	17-1/4 in
Width:	4-1/4 in
Depth:	11 in
Chuck Size:	1 in
Drilling Depth:	11 in
Material:	Steel
Finish:	Red/Gray/Black



STANDARD APPROVALS

1-UL Listed, CSA Listed, ETL Listed
