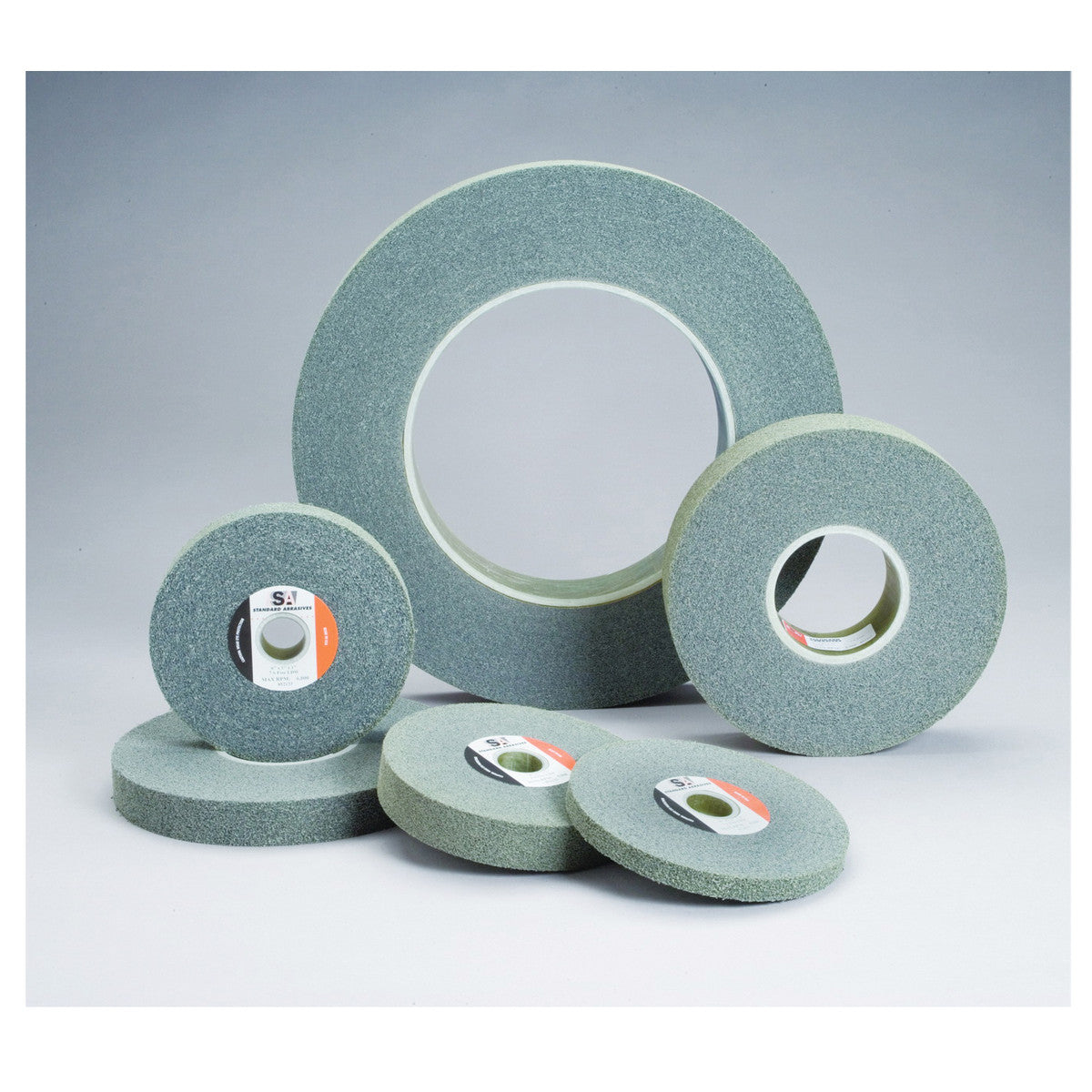

Standard Abrasives 051115-32479 Convolute Wheel, 6 in Dia, 1 in Center Hole, 1 in W Face, Fine Grade, Silicon Carbide Abrasive (3/CS)

Product Description

Standard Abrasives™ Convolute Wheel, Center Hole Attachment, Silicon Carbide Abrasive, 6 in Wheel Diameter, 1 in Center Hole, 1 in Face Width, Fine Grade, 6000 rpm Maximum, Medium Density Grade, 7 Density Number

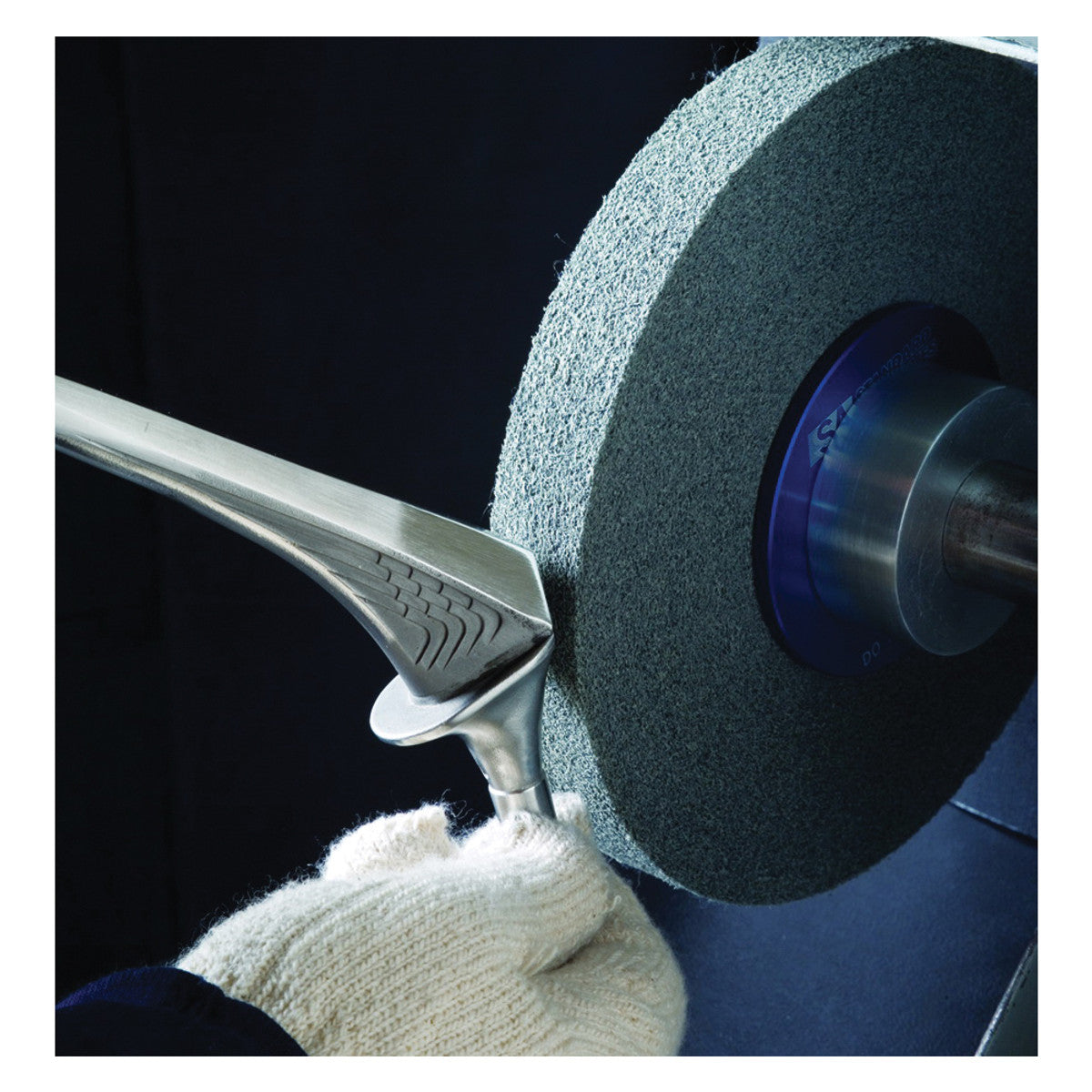

The Standard Abrasives™ light deburring wheel finishes and deburrs parts with critical tolerances and may be used on automated equipment, straight shaft stationary and portable tools as well as feed through machines. Standard Abrasives™ light deburring wheel utilizes a fine grade silicon carbide mineral. These wheels vary in density, ranging from 6 to 8. Higher density wheels tend to be more durable and have a longer service life. Lower density wheels indicate softer feel. This lower density enables the wheel to be more flexible and conform to the substrate. Light deburring wheels tend to be less aggressive and finish finer than other convolute wheels. These wheels are convolute wheels, meaning they must be run in one direction as indicated by the arrow on the side of the wheel. The abrasive web, made with resin and silicon carbide mineral, is wound around the wheel's core. The silicon carbide mineral is bonded with a smear-resistant resin that will not smudge or stain the substrate. These attributes contribute to a cleaner, brighter finish on the substrate. Our light deburring wheel is a great starting point for your light blending, polishing and deburring applications. Consider it a trusted tool for achieving a fine finish on the workpiece.



PACKAGE DESCRIPTION

Package Quantity: 1/WH



APPLICATION

Blending, Light Deburring and Polishing



FEATURES

• Great for light deburring, blending machine and belt marks and finishing small parts
• Soft density enables the abrasive to conform to the substrate, which prevents undercutting and gouging
• The light deburring wheel has a fast finish rate that requires less effort than competitive wheels
• Wheel is non-metallic, so it won't contaminate the workpiece
• Maintains a smear resistant finish



SPECIFICATIONS

Attachment Type:	Center Hole
Abrasive Material:	Silicon Carbide
Wheel Diameter:	6
Center Hole Size:	1
Face Width:	1
Grade:	Fine
Maximum Speed:	6000
Density Grade:	Medium
Density Number:	7



STANDARD APPROVALS

OSHA 29 CFR 1910.1200
